Plate thickness: 1.6 + / - 0.1mm
Plate: 5052 high thermal conductivity aluminum
Minimum aperture: 2.0 mm
Surface treatment: gold deposit
Thermal conductivity of insulating layer: 2.0
Outer copper thickness: 35um
Gold thickness: > = 2U“
Process features: aluminum base, high thermal conductivity

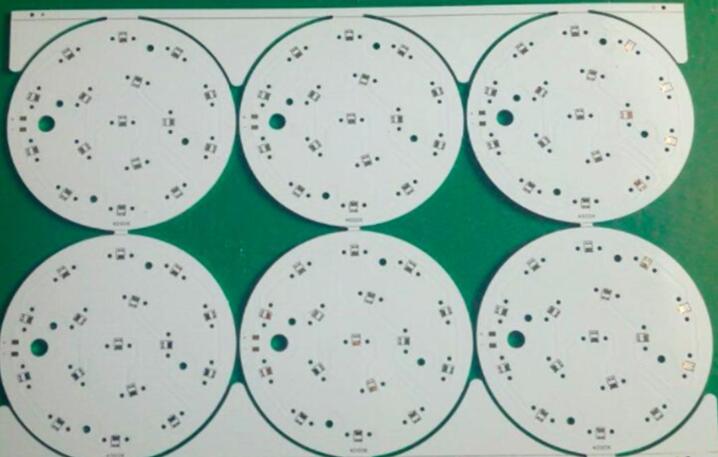

Single sided high thermal conductivity aluminum pcb uses reliable aluminum, copper and other metal materials.
Common thermal conductive aluminum substrate, high thermal conductive aluminum substrate and copper substrate ensure the quality and reliability of the circuit board.
Strict incoming inspection process to ensure that all indicators of each material are within the qualified range
Application fields: automotive power control module, ordinary LED lighting, high power LED PCB lighting, AC converter, dimming system, DC-AC converter, switch adjusting machine, solid state relay, rectifier bridge, etc
